820-01700 A2141 AMD GPU Disable Repair – PPBUS_G3H Short and Data Recovery

Fault Description

This 16-inch MacBook Pro 2019, model A2141, logic board 820-01700, came from the Berwick / Harkaway VIC 3806 area.

The customer reported:

Mac suddenly died
No power
No water damage
Already checked by another repair shop
Customer was told it was not repairable
Customer was also told all data was gone

Initial USB-C reading:

5V / 0A

This is a typical “dead board” symptom, but in this case the main goal was not just repair. The customer needed the data recovered.

Case Summary

Item	Details
Device	16-inch MacBook Pro 2019
Model	A2141
Logic board	820-01700
Customer area	Berwick / Harkaway VIC 3806
Fault	No power, no water damage
Previous diagnosis	Another shop said not repairable and data was gone
Initial USB-C reading	5V / 0A
Main rail fault	PPBUS_G3H shorted
Shorted GPU rails	LA850, LA860, LA870, LA950, LA750 short to ground
Conclusion	AMD GPU and VRAM section failed
Repair option accepted	Dedicated AMD GPU disable repair
Display path used after repair	Intel graphics / Intel eDP
Backlight method	Hardware backlight restored, software brightness dimming
Final result	MacBook working, data accessible

Initial Diagnosis – PPBUS_G3H Short

The first important finding was:

PPBUS_G3H shorted

Further checks showed multiple AMD GPU-related rails were also shorted to ground:

LA850 short to ground
LA860 short to ground
LA870 short to ground
LA950 short to ground
LA750 short to ground

These rails are related to the AMD GPU and its video RAM power section.

After removing:

LA850
LA860
LA870
LA950
LA750

the PPBUS_G3H short was gone.

This confirmed the short was not in the charger circuit or the main PPBUS generation path. The load was on the AMD GPU / VRAM side.

Why GPU Disable Was Chosen

At this point, the AMD GPU and video RAM section was not healthy. A full repair would mean dealing with the failed GPU / VRAM side, which may not be practical or cost-effective.

The customer accepted the dedicated GPU disable repair option.

This repair does not restore the MacBook to original factory GPU function. Instead, it disables the faulty AMD graphics section and forces the MacBook to use the Intel graphics path.

For this case, it was a good option because:

the customer mainly needed data recovery;
the original logic board could be made to boot again;
the AMD GPU/VRAM short was removed from the main power path;
the system runs cooler without the AMD GPU;
battery runtime is usually longer;
full hardware backlight can still be restored.

Pros and Cons of AMD GPU Disable Repair

Pros

Can recover data from a MacBook that was previously considered dead.
Avoids full logic board replacement.
Lower heat because the AMD GPU is no longer running.
Longer battery runtime in many cases.
Good for normal use: documents, web, email, office work, browsing and basic tasks.
Can keep the original board and data intact.

Cons

Not ideal for gaming.
Some external-display workflows may be limited.
Brightness control is handled by software dimming after full hardware backlight is restored.
It is a practical repair option, not a factory-original repair.

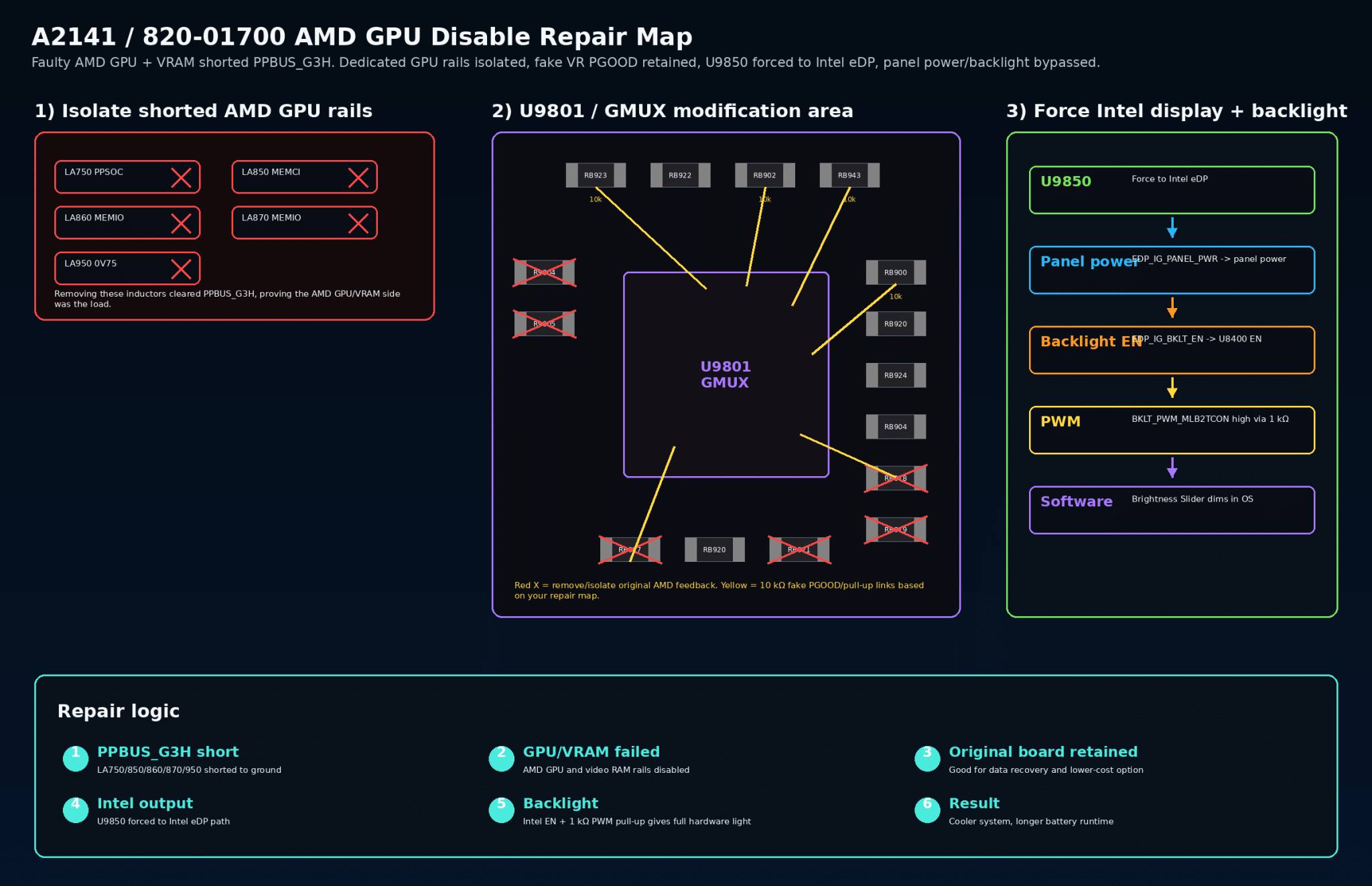

GPU Disable Procedure

The working logic was:

AMD GPU power rails disabled
↓
Fake VR PGOOD sequence retained
↓
U9850 forced permanently to Intel eDP
↓
Intel panel-power request directly controls panel power
↓
Intel backlight-enable directly controls U8400 enable
↓
BKLT_PWM_MLB2TCON pulled high through 1 kΩ
↓
Full hardware backlight restored
↓

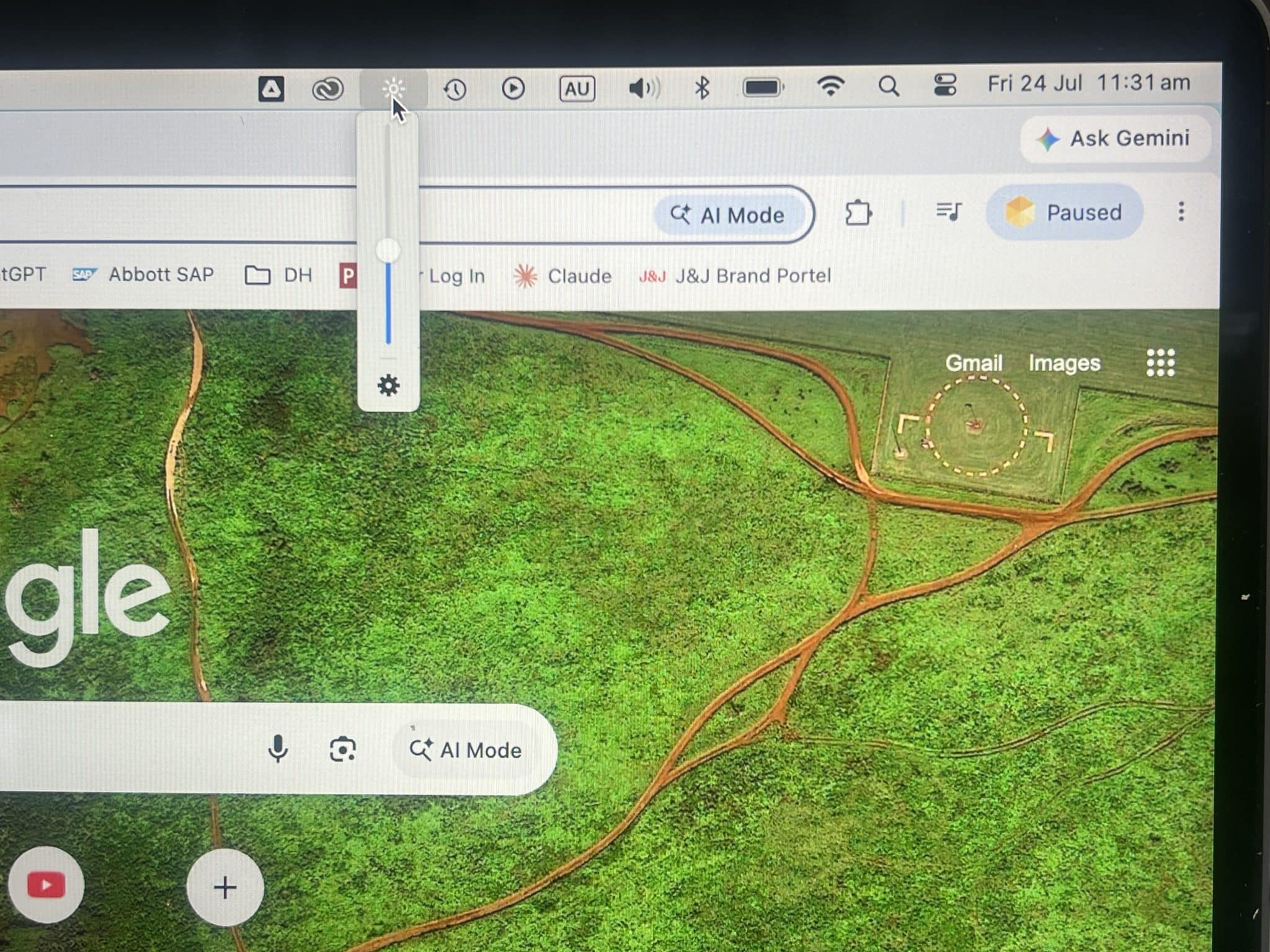

Brightness Slider provides software dimming

The important idea is that the system must still “see” a valid display/GPU power-good condition, even though the faulty AMD GPU power rails are no longer used.

If the fake PGOOD / routing logic is not done correctly, the Mac may power on but still have no image, no backlight, or unstable display behaviour.

Repair Timeline

Step	Result
Customer reported no power	Confirmed
USB-C meter	5V / 0A
PPBUS_G3H checked	Shorted
GPU / VRAM rail check	LA850, LA860, LA870, LA950 and LA750 short to ground
Removed shorted GPU rail inductors	PPBUS_G3H returned
Diagnosis	AMD GPU and VRAM section failed
Customer option	Accepted GPU disable repair
AMD GPU rails	Disabled
GPU PGOOD logic	Fake VR PGOOD sequence retained
Display route	U9850 forced to Intel eDP
Panel power	Intel panel-power request controls panel power
Backlight enable	Intel backlight-enable controls U8400 enable
Brightness PWM	BKLT_PWM_MLB2TCON pulled high through 1 kΩ
Brightness control	Brightness Slider software dimming
Final result	MacBook boots, display works, data recovered

Key Lesson

This case shows that data recovery is not always lost just because the dedicated GPU has failed.

If the AMD GPU / VRAM section is shorting PPBUS_G3H, the MacBook may look completely dead. But once the failed GPU power rails are isolated, the Intel graphics path can sometimes be used to restore boot and display output.

The key is understanding the relationship between:

PPBUS_G3H
GPU power rails
U9801 GMUX / PGOOD logic
U9850 display path selection
Intel eDP output
Backlight enable and PWM

Blindly replacing parts is not enough. The GPU disable repair depends on controlling the power-good logic and display routing correctly.

Final Fix

The final repair included:

confirmed PPBUS_G3H short;
confirmed multiple AMD GPU / VRAM rails shorted to ground;
removed LA850, LA860, LA870, LA950 and LA750 to isolate the failed GPU section;
retained fake GPU VR PGOOD logic;
forced U9850 permanently to Intel eDP;
routed Intel panel-power request to panel power;
routed Intel backlight-enable to U8400 enable;
pulled BKLT_PWM_MLB2TCON high through 1 kΩ;
restored full hardware backlight;
used Brightness Slider for software dimming;
confirmed MacBook working and data accessible.

Final result:

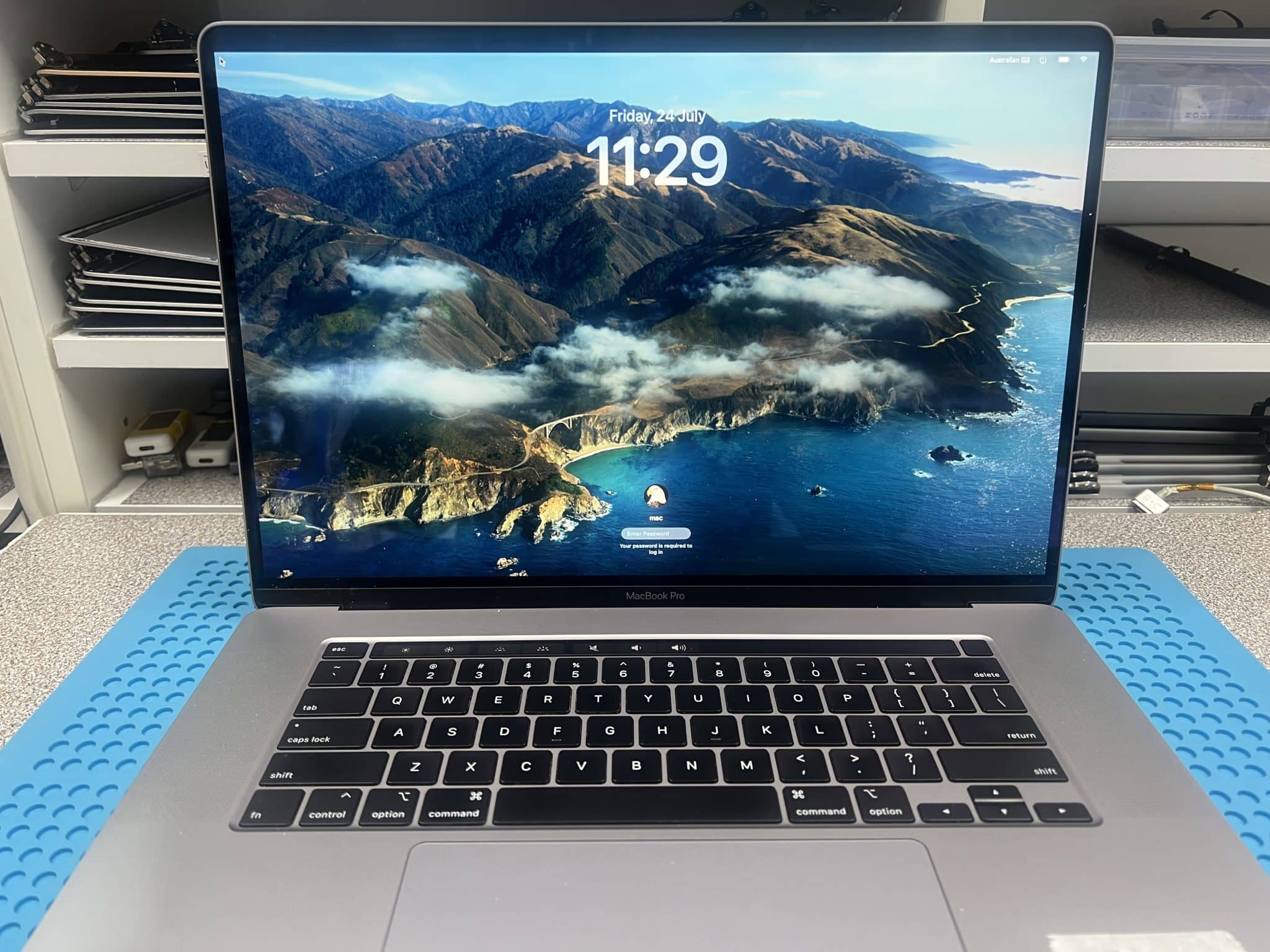

MacBook working
Data recovered
System running cooler
Battery runtime improved
