14-Inch MacBook Pro Water Damage Repair
This 14-inch MacBook Pro came to us with water damage and no backlight. The customer had already visited the Apple Store and was told the logic board needed to be replaced. After component-level diagnosis, we found and replaced the faulty chips in the backlight circuit and restored the MacBook to full working condition.
- 14-inch MacBook Pro water damage repair
- No backlight fault fixed at board level
- Apple recommended board replacement
- Faulty chips found and replaced
- MacBook fully functional again
Quick Repair Summary
- Device: 14-inch MacBook Pro
- Logic board: 820-02098
- Fault: Water damage, no backlight, dim image only
- Previous diagnosis: Apple Store recommended logic board replacement
- Repair type: Chip-level backlight circuit repair
- Outcome: Backlight restored and MacBook fully functional
The Problem: Water Damage and No Backlight
The customer brought in this 14-inch MacBook Pro after water damage. The MacBook still produced an image on the screen, but the display had no backlight. A very dim image could be seen only when looking closely, which usually means the LCD image signal is present but the backlight circuit is not working.
Before coming to us, the customer had already visited the Apple Store and was told the logic board needed to be replaced. Instead of replacing the whole board, we carried out a board-level diagnosis to locate the actual failed components.
Board-Level Diagnosis
Modern MacBook logic boards contain thousands of tiny components. A liquid-damaged Mac may look almost normal, but a small amount of corrosion in the wrong area can stop an important power circuit from working.
For this repair, we used schematics, boardview, microscope inspection, multimeter testing and professional diagnostic equipment to trace the fault. The problem was located in the backlight power circuit on the 820-02098 logic board, where damaged components were preventing the MacBook from producing normal backlight power.
Replacing the Faulty Chips
After confirming the fault area, we removed the failed components from the logic board and replaced them with suitable replacements. This type of repair requires accurate heat control, microscope work and careful inspection after soldering.
In this case, the faulty parts were in the backlight buck/boost power circuit. Once the damaged components were replaced and the surrounding area was cleaned, the backlight returned and the MacBook began displaying normally again.

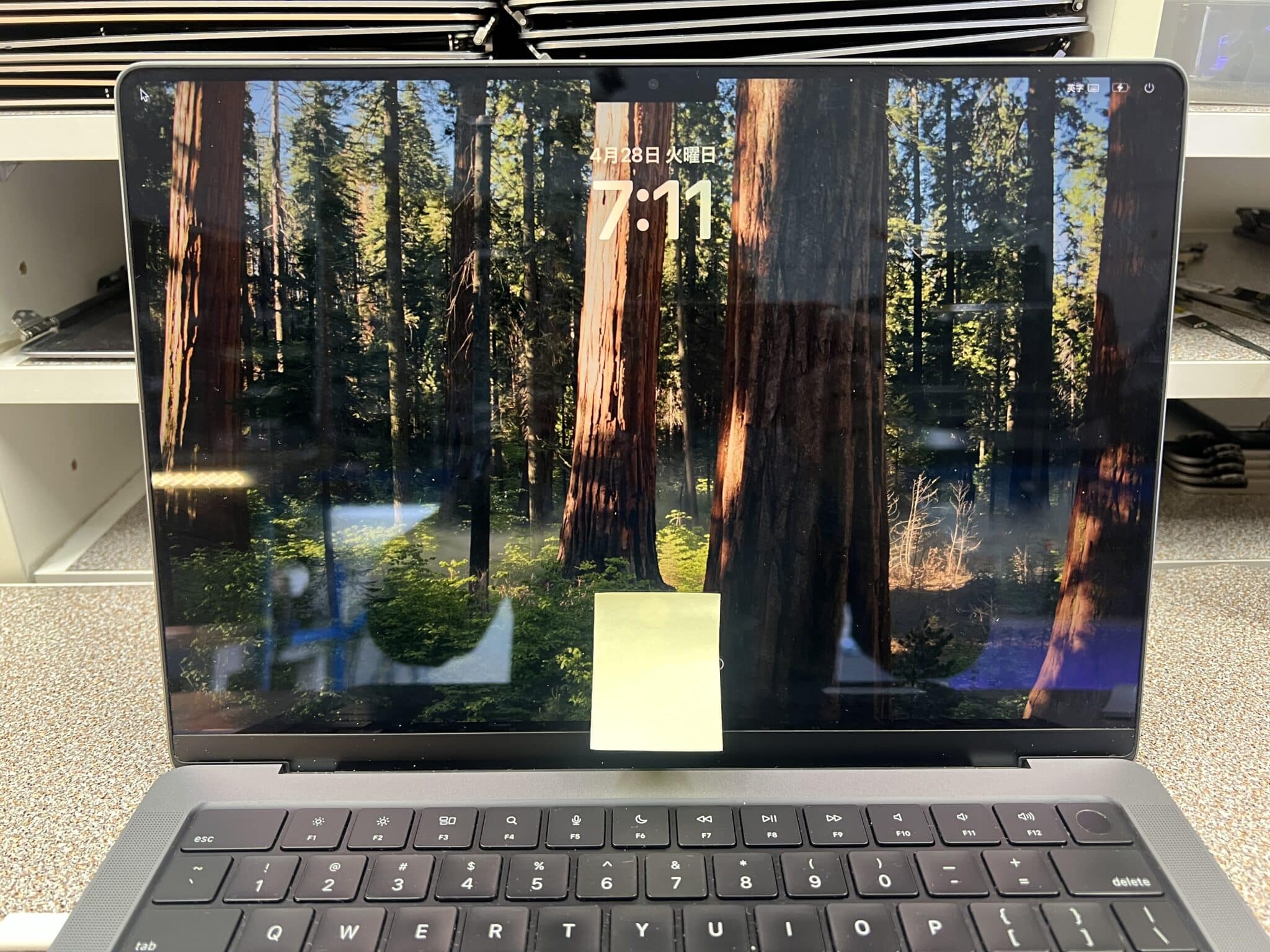

The Result: Fully Functional Again
After the repair, the MacBook was tested again. The display backlight was restored, the image was normal, and the brightness controls worked correctly. The MacBook is now fully functional again without replacing the entire logic board.
- Backlight restored
- Display working normally
- Brightness control working
- Original logic board repaired
- MacBook fully functional
Why This Repair Matters
When a MacBook has liquid damage, the recommended repair is often a complete logic board replacement. In some cases, replacement is necessary. However, many faults are caused by a small number of failed components on the board.
A proper component-level diagnosis can often save the original logic board, reduce repair cost, preserve customer data and avoid unnecessary electronic waste.
